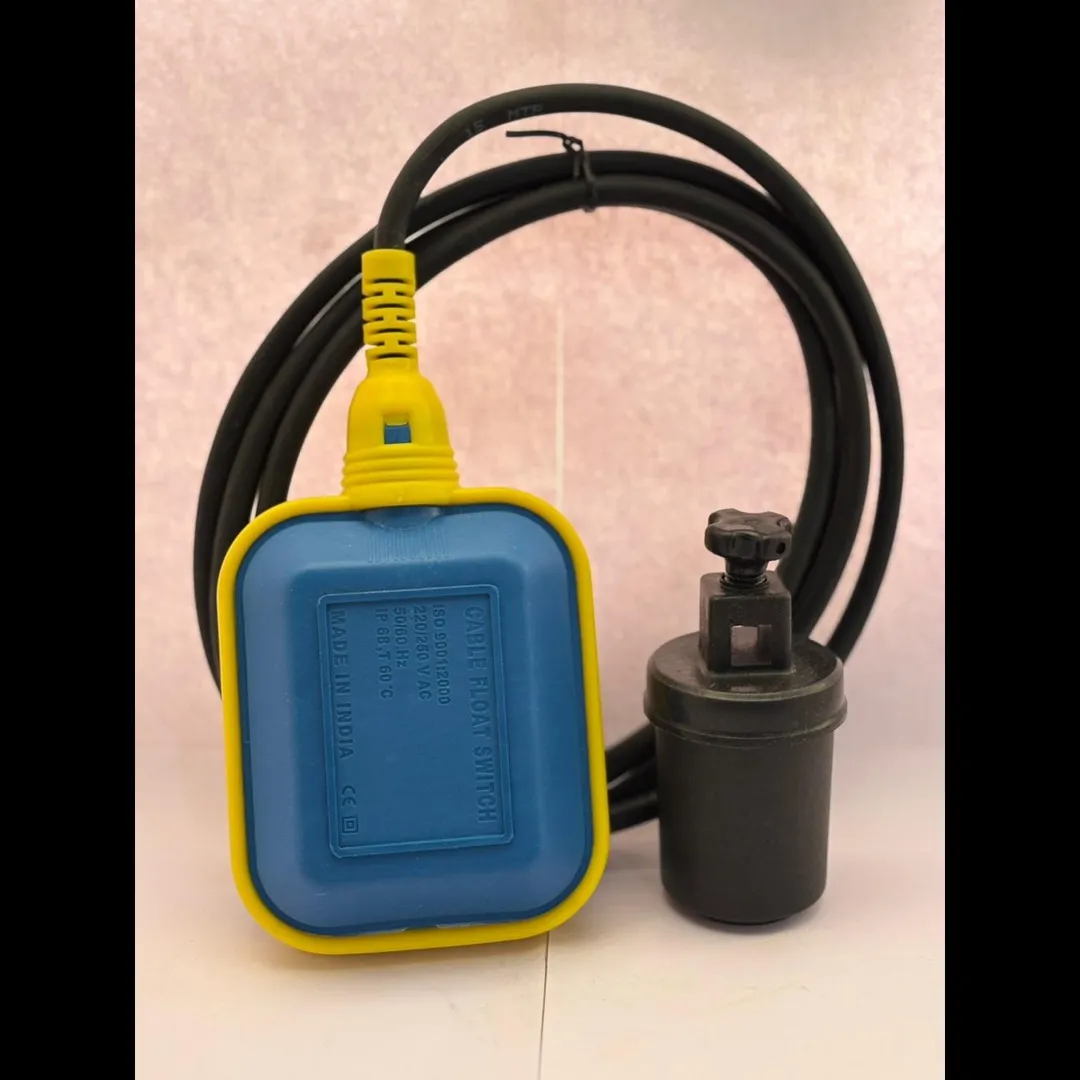

cable float switch assembly commonly used for automatic water level control in tanks, sump pumps, industrial water systems, and similar applications.
Main Components Visible:
Float Switch (Blue & Yellow Body)
The large blue-and-yellow rectangular component is the actual float.
As water level rises or falls, the float tilts and activates an internal microswitch.
Attached Cable
A long, thick, insulated cable is connected to the float.
This cable carries the switching signal to the pump/control panel.
Counterweight (Black Component)
The cylindrical black part with a clamp is a counterweight.
It lets you fix the float’s cable at a certain position, controlling the switching level inside the tank.
Markings Visible on the Float
CABLE FLOAT SWITCH
ISO 9001:2000
220–250V AC
50/60 Hz
5A, 10(4)A
T 75°C
IP68
Made in India
Main Components Visible:
Float Switch (Blue & Yellow Body)
The large blue-and-yellow rectangular component is the actual float.
As water level rises or falls, the float tilts and activates an internal microswitch.
Attached Cable
A long, thick, insulated cable is connected to the float.
This cable carries the switching signal to the pump/control panel.
Counterweight (Black Component)
The cylindrical black part with a clamp is a counterweight.
It lets you fix the float’s cable at a certain position, controlling the switching level inside the tank.
Markings Visible on the Float
CABLE FLOAT SWITCH
ISO 9001:2000
220–250V AC
50/60 Hz
5A, 10(4)A
T 75°C
IP68
Made in India
