Cable Flow Switch with Counterweight (Gelzon Brand)

### *1. Product Overview*

The *Gelzon Cable Flow Switch* is a heavy-duty liquid level controller designed for automatic pump ON/OFF control in water tanks, borewells, sumps, sewage pits and industrial tanks. It uses a tilt-activated internal microswitch to detect rising or falling water levels and switch circuits accordingly.

# *2. Electrical Specifications*

* *Rated Voltage:* 220–250V AC
* *Rated Current:* 10A
* *Max Load Capacity:* Up to 1 HP pump (direct), higher via starter
* *Power Frequency:* 50/60 Hz
* *Switch Type:* SPDT (Changeover – NO/NC selectable via wiring)
* *Contact Rating:* 10A resistive
* *Dielectric Strength:* ≥1500 VAC / 1 minute
* *Insulation Resistance:* ≥100 MΩ
* *Cable Core:* *3-core* (Blue, Brown, Black)

# *3. Mechanical Specifications*

* *Float Body Material:* Industrial-grade PP/ABS
* *Outer Seal:* Thick black rubber sealing
* *Cable Type:* Heavy insulated PVC waterproof cable
* *Cable Length (visually approx.):* 10–12 m (You can confirm exact length if needed)
* *Cable Diameter:* ~9 mm

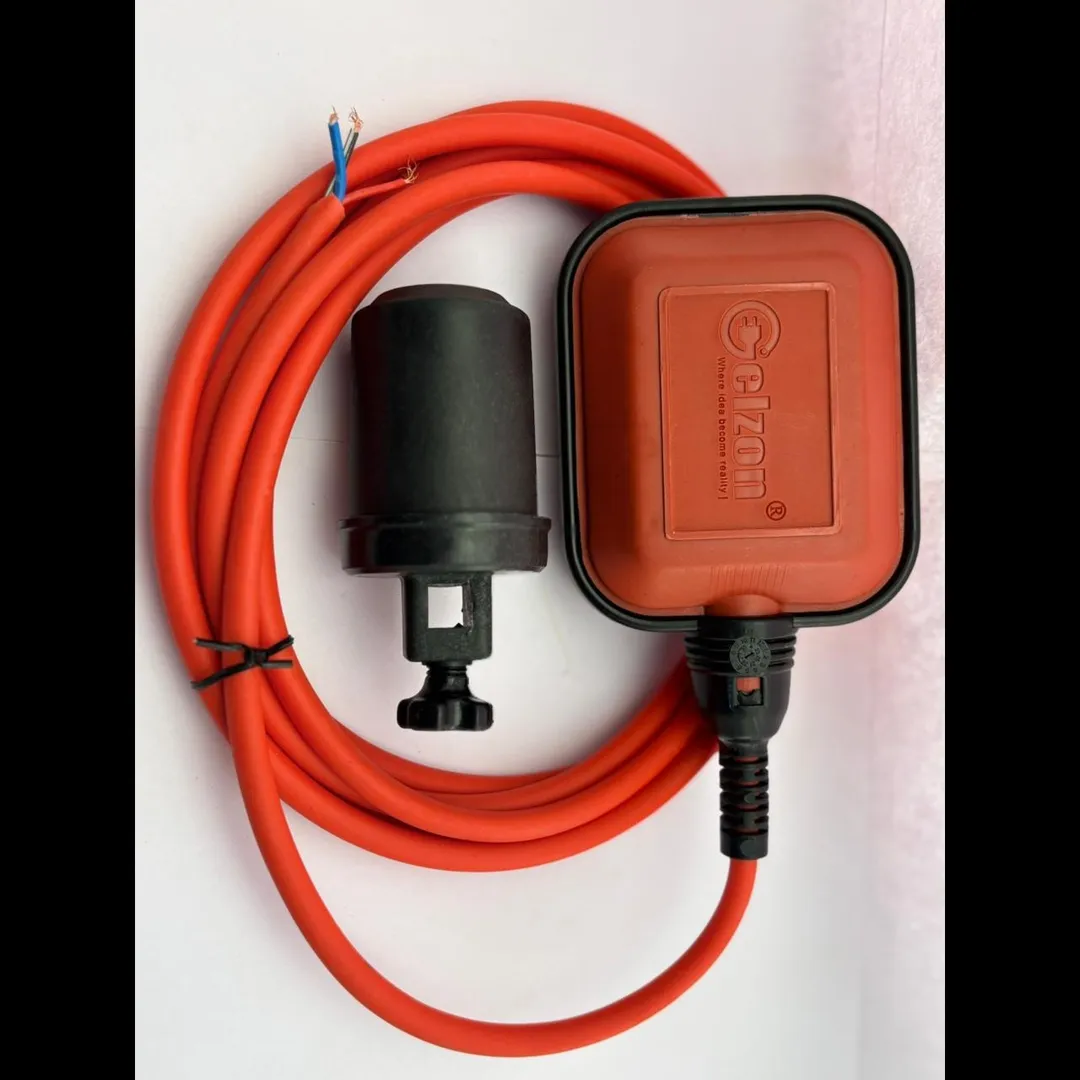

* *Included Accessory:* *Heavy black counterweight* (visible in image)
* *Float Dimensions:* Approx. 105 × 75 mm
* *Actuation Angle:* 28°–45°
* *Mechanical Life:* >100, 000 cycles
* *Wire Termination:* Open-end, stripped

# *4. Environmental Specifications*

* *Waterproof Rating:* *IP68* (fully submersible)
* *Operating Temperature:* –20°C to +85°C
* *Liquid Compatibility:*

* Drinking water
* Wastewater / sewage
* Effluent
* Non-corrosive industrial liquids
* *Max. Immersion Depth:* 20–30 m (cable dependent)

# *5. Performance Characteristics*

* High buoyancy for stable operation
* Instant internal tilt-switch response
* Counterweight allows precise water-level calibration
* Resistant to sediment and turbulence
* Suitable for long-term continuous submersion

# *6. Safety & Compliance*

* *Electrical Safety:* Double insulated
* *Common Certifications:*

* CE
* RoHS
* ISO 9001 manufacturing standards
* *Short Circuit Protection:* Use with appropriate MCB / relay / starter

# *7. Wiring Configuration (3-Core)*

* *Blue:* Common (COM)
* *Black:* Normally Closed (NC)
* *Brown:* Normally Open (NO)

(I can create a wiring diagram image if you want.)

# *8. Applications*

* Overhead water tanks
* Sump automation
* Borewell pump control
* Sewage/wastewater tanks
* Industrial fluid storage
* Agricultural irrigation tanks
* Rainwater harvesting systems
