Gelzon” cable float switch from Widely Technologies

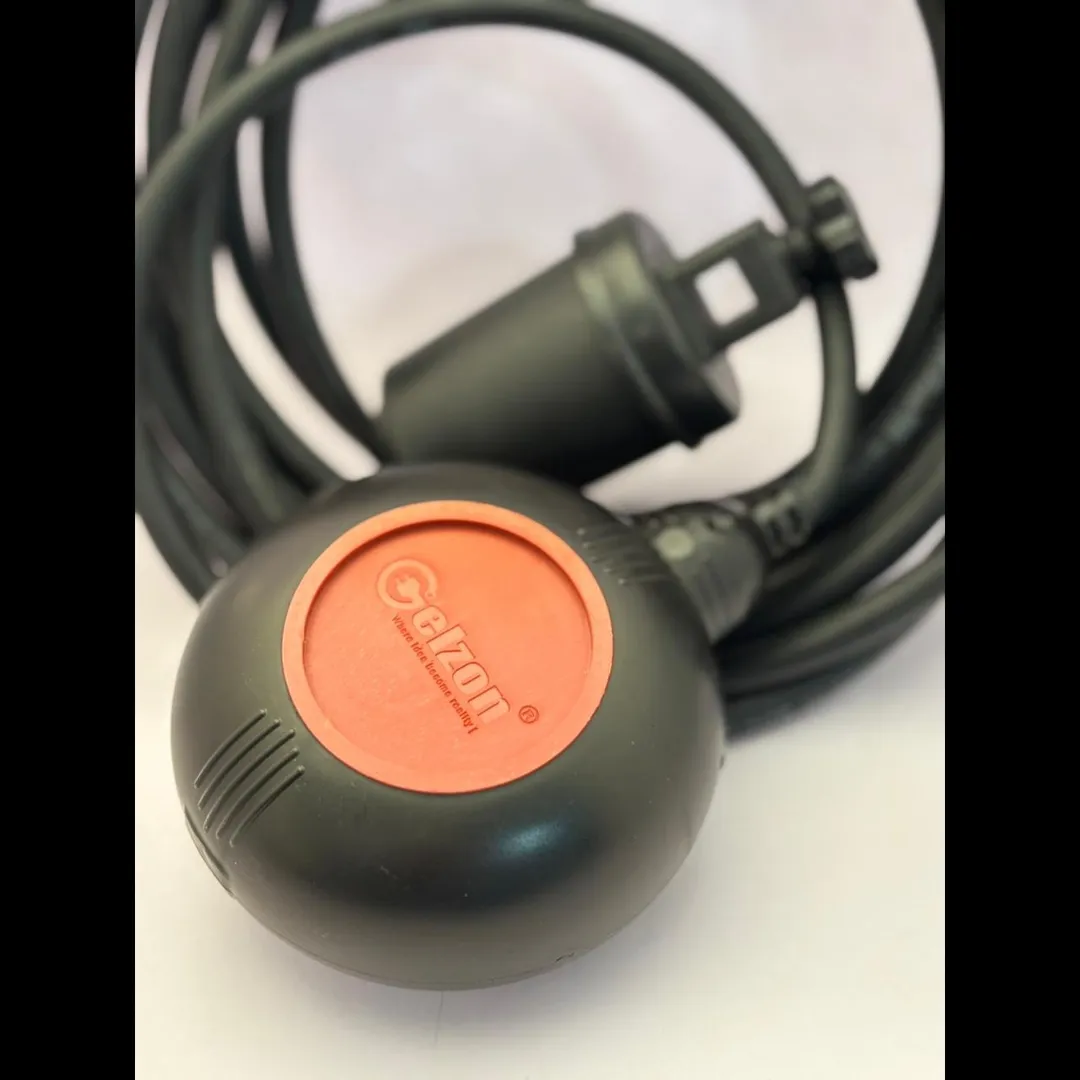

(Gelzon‑brand) Rubber‑Cable Float Switch
Specifications
Float / Body Material Polypropylene (PP) plastic
Switch Type Micro-switch (mechanical), SPDT (Single Pole, Double Throw) — pump up or pump down application possible
Cable / Tether Heavy-duty natural rubber, multi-core (3-core, fully flexible cable)
Available Cable Lengths 2 m, 3 m, 5 m, 10 m (according to manufacturer)
Electrical Ratings - Switching current: 15 (5) A @ 250 VAC
- Alternatively: 15 (16) A @ 125VAC
- DC: 0.6 A @ 125 VDC; 0.3 A @ 250 VDC
Operating / Ambient Temperature Range –30 °C to +90 °C
Working Pressure Up to ~2 bar (as stated by manufacturer)
widely technologies
Protection / Sealing IP 65 and/or IP 67 rating (manufacturer lists both)
Switch Life / Endurance The manufacturer claims “switch working tested by VDE” for >100, 000 operations.
Weight ~540 g (for a Gelzon float switch)
Mounting / Application - Used for water level control (tanks, sumps, etc.)
- Can be used for “pump up” or “pump down” depending on how float is oriented / tethered
- Suitable for fluids compatible with PP
- Designed to avoid nuisance trips (latching-ball design)
widelytechnologies.in
Safety / Certifications According to the manufacturer: “tested by VDE, ” but no explicit CE marking or other safety certification is mentioned in their site spec sheet.
(Gelzon‑brand) Rubber‑Cable Float Switch
Specifications
Float / Body Material Polypropylene (PP) plastic
Switch Type Micro-switch (mechanical), SPDT (Single Pole, Double Throw) — pump up or pump down application possible
Cable / Tether Heavy-duty natural rubber, multi-core (3-core, fully flexible cable)
Available Cable Lengths 2 m, 3 m, 5 m, 10 m (according to manufacturer)
Electrical Ratings - Switching current: 15 (5) A @ 250 VAC
- Alternatively: 15 (16) A @ 125VAC
- DC: 0.6 A @ 125 VDC; 0.3 A @ 250 VDC
Operating / Ambient Temperature Range –30 °C to +90 °C
Working Pressure Up to ~2 bar (as stated by manufacturer)
widely technologies
Protection / Sealing IP 65 and/or IP 67 rating (manufacturer lists both)
Switch Life / Endurance The manufacturer claims “switch working tested by VDE” for >100, 000 operations.
Weight ~540 g (for a Gelzon float switch)
Mounting / Application - Used for water level control (tanks, sumps, etc.)
- Can be used for “pump up” or “pump down” depending on how float is oriented / tethered
- Suitable for fluids compatible with PP
- Designed to avoid nuisance trips (latching-ball design)
widelytechnologies.in
Safety / Certifications According to the manufacturer: “tested by VDE, ” but no explicit CE marking or other safety certification is mentioned in their site spec sheet.
