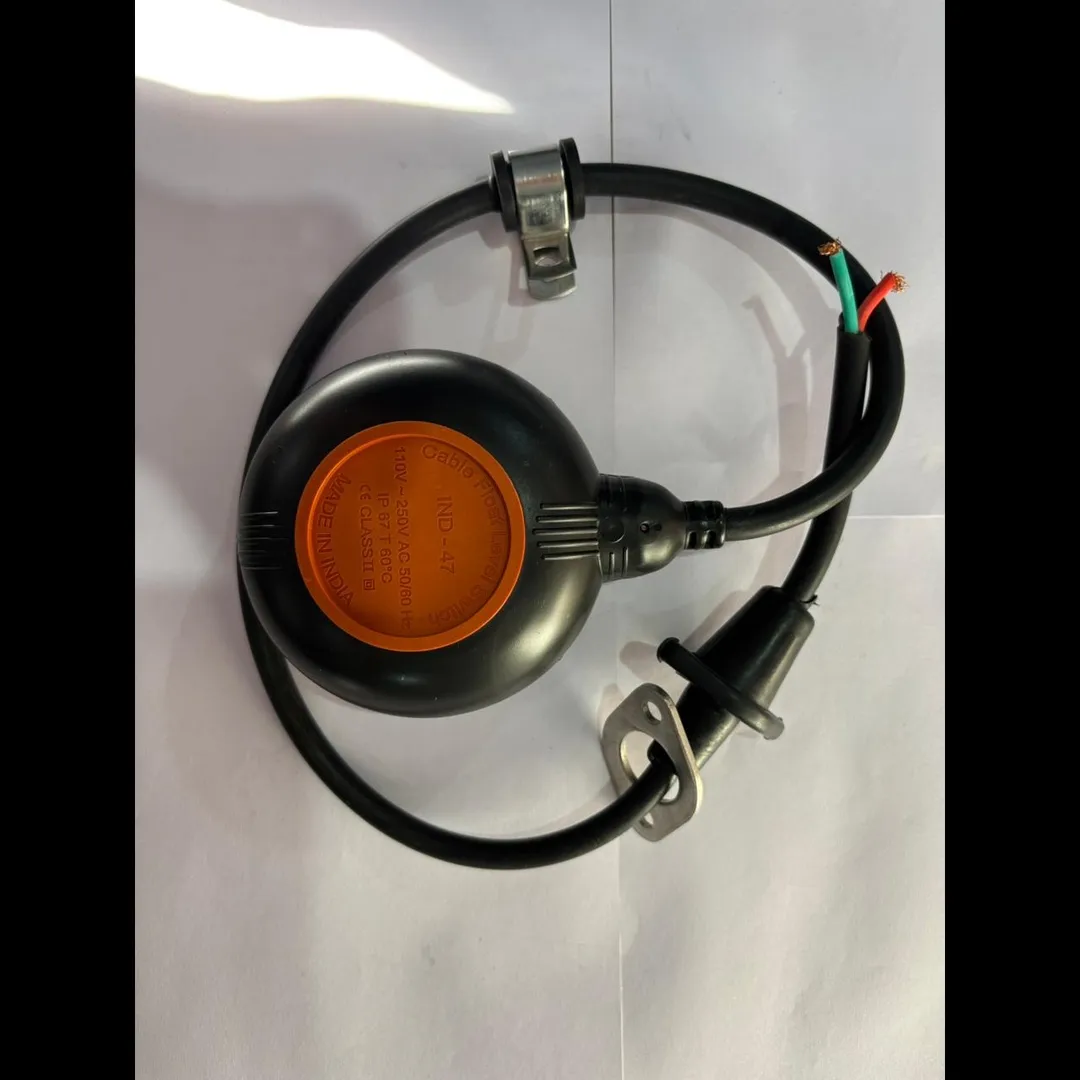

Gelzon Cable Float Switch

CABLE QUALITY: - Heavy Duty Natural Rubber Cable
CABLE LENGTH: - (….) MTR (3 core 1.50/2.50 sq.mm. fully flexible wire) (-40°C to +85°C)
INPUT VOLTAGE: - 12 VDC/110~230VAC (50/60Hz) [High Voltage Test {0/15uS, 1.2KV}]
SWITCHING
CURRENT: -
21(8)A, 250V~ 21A, 1HP, 125VAC; 2HP, 250VAC, 21A 1.5/2 HP - 125/250VAC*
According to EN &
UL: -
50, 000 & 6, 000(Min. Operation) Electrical Life at Rated Load
SWITCH CURRENCY:
-
+++> 50, 000 Switch working Tested by VDE Specialization
Switching Voltage: - 12 V DC / 230 AC
Contact Rating: - 21 A @ 230 Vac
WORKING
PRESSURE: -
2 Bar
PROTECTION CLASS:
-
IP X7, IP 6X & Mercury free operated Switch
WEATHER
RESISTANCE: -
Cables have good weather resistance, can work normally in the temperance of -40°C to
90°C, and will not harden or deform due to temperature changes.
Wire: - Natural Rubber Insulated
Construction of
Body: -
Polypropylene & PBT & PET
MEDIA
TEMPERATURE: -
Max 60°C
COC: - RoHS , CE, GMP & ISO 9001:2015 CERTIFIATE COMPANY
Weights: - MS (PP Encapsulated)
Repeatability: - ±50mm
Overall Dimensions: 44.5mm (H) x 164mm (W) x 89mm(D)
Approved by: - SGS and NABL
