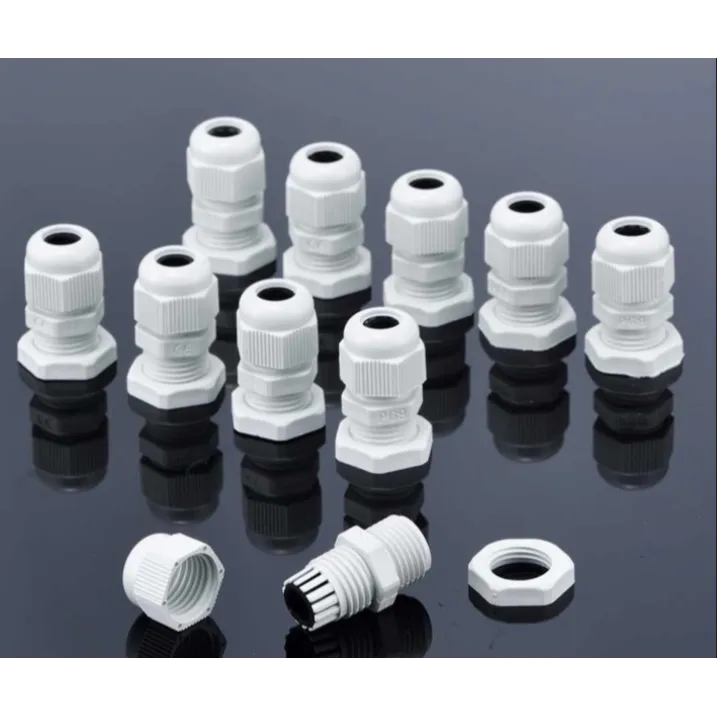

Nylon Cable Gland

Nylon Cable Gland –

Material (Body & Nut): Polyamide PA6 (Nylon)

Seal Insert: NBR / EPDM

Color: White (Black & Grey optional)

Thread Type: PG (DIN 40430)

Ingress Protection: IP65 / IP68 (when properly installed)

Operating Temperature:

Static: −40°C to +100°C

Dynamic: −20°C to +80°C

Flammability Rating: UL94 V-2 (V-0 optional)

Resistance: Oils, greases, fuels, weak acids & alkalis

Applications

Electrical panels & control cabinets

Junction boxes

Industrial automation systems

Power distribution equipment

Customize specs for PG7, PG9, PG11, PG13.5, PG16, etc.
