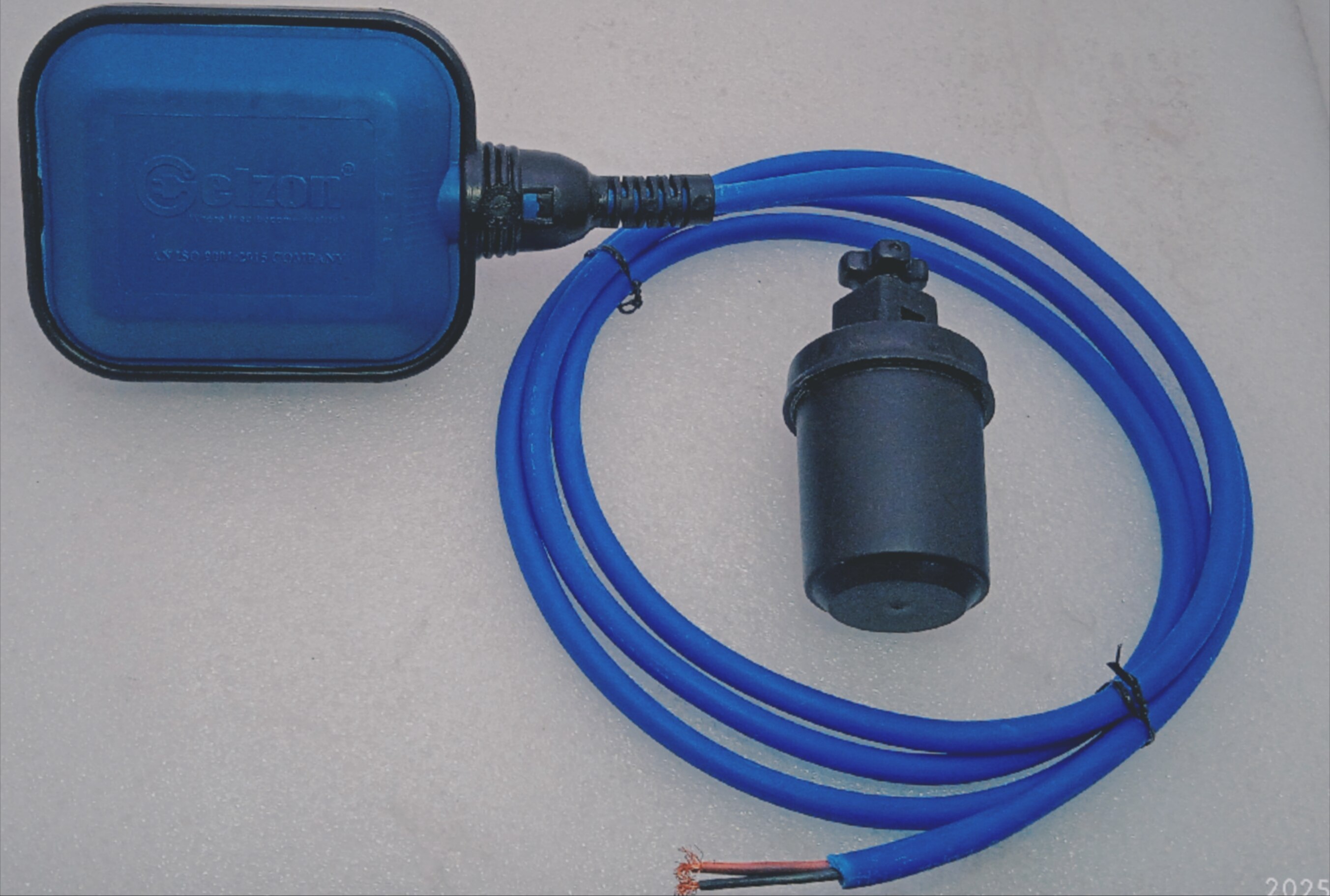

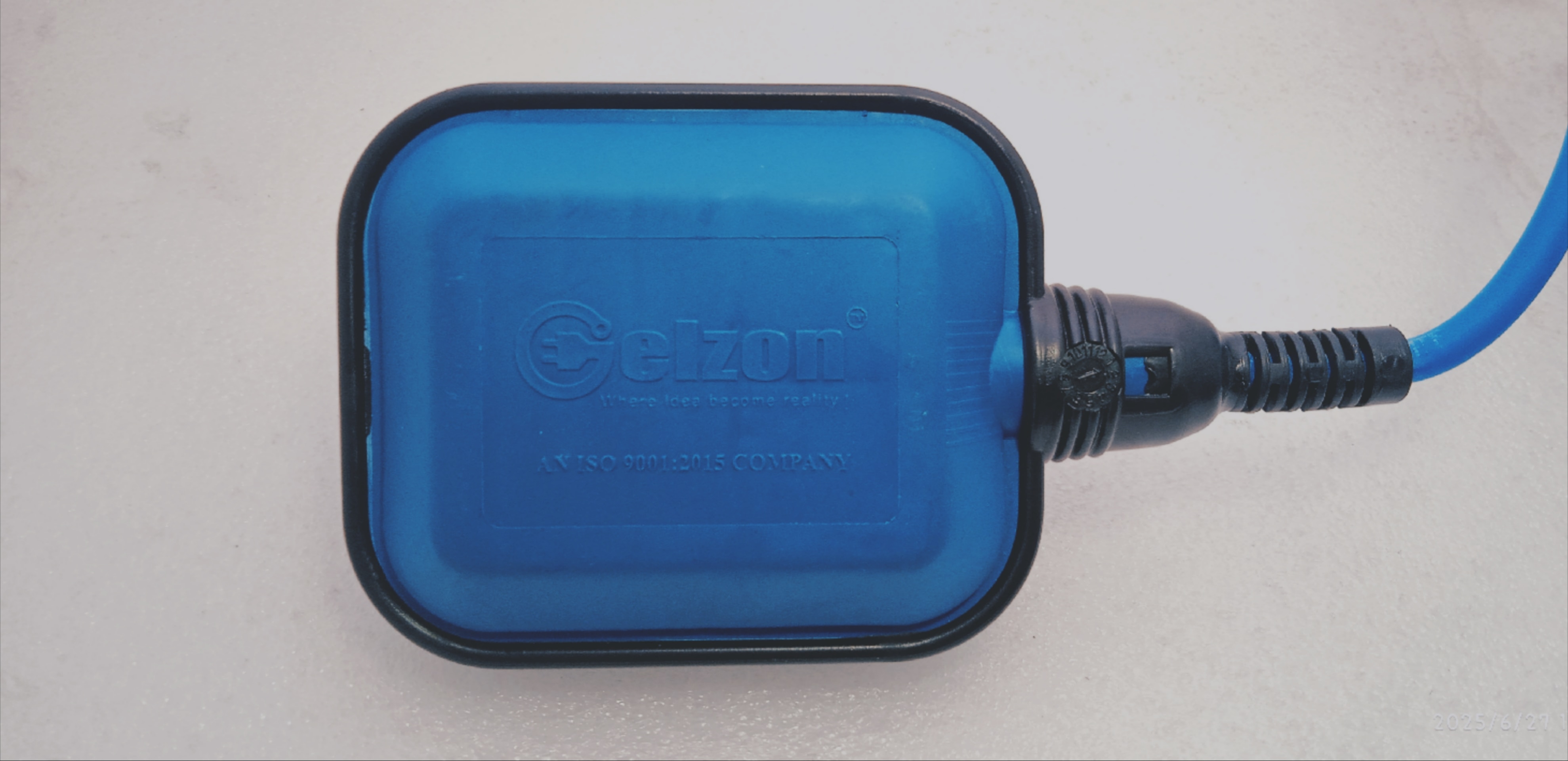

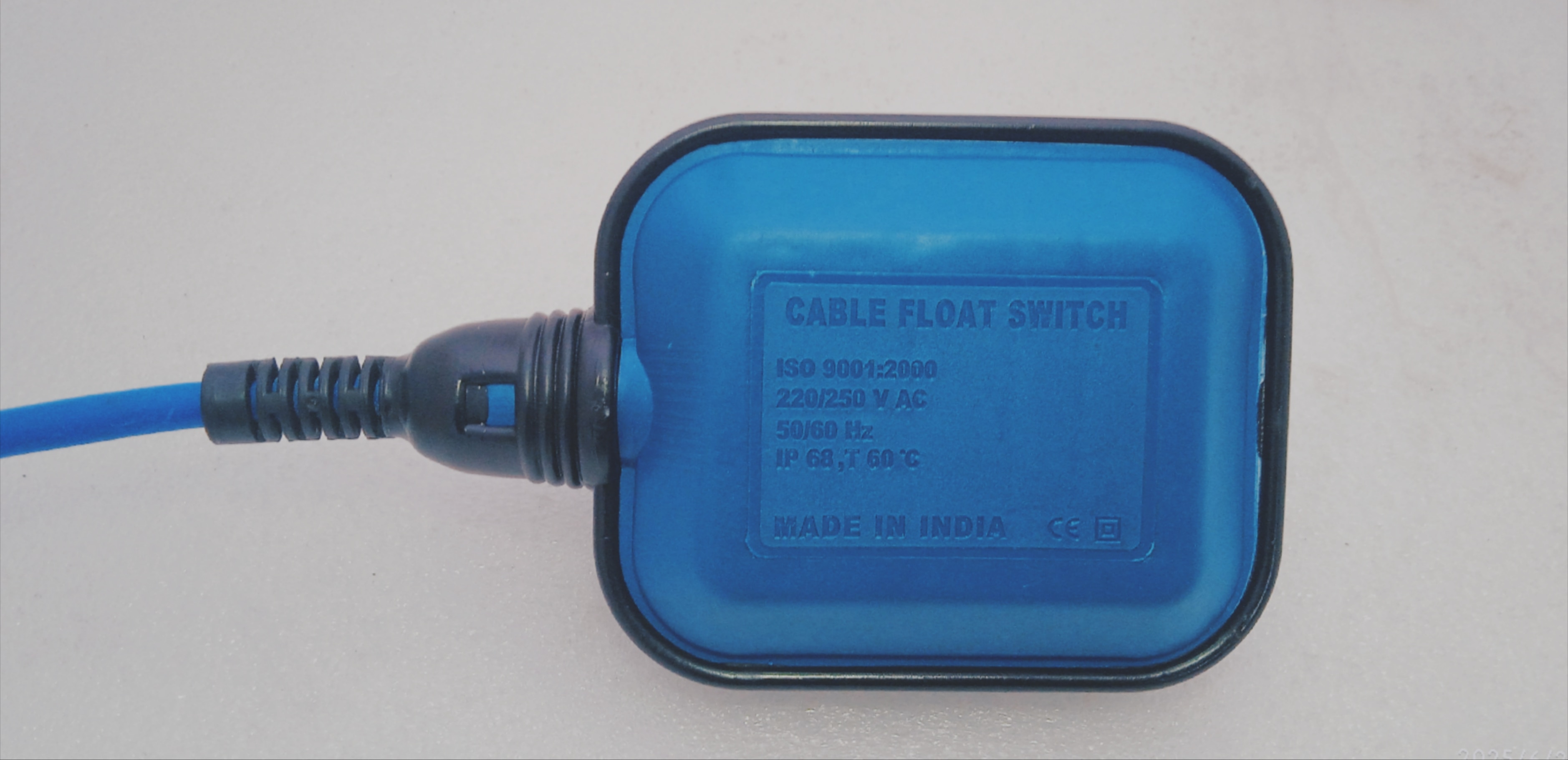

GCFL15ABBW Pro
Description
Cable Float Switch Manufacturer
SPECIFICATION :-
CABLE QUALITY :- Heavy Duty Natural Rubber Wire
CABLE LENGTH :- ... mtr ( 3 core 1.0 sq.mm. fully flexible wire)
SWITCHING CURRENT :- 15 (5)A 250 VAC - 15 (15)A 125 VAC , 0.6A 125 VDC - 0.3A 250 VDC,
15A 1.5/2 HP - 125/250VAC*
SWITCH CURRENCY :- +++> 1,00,000 Switch working Tested By VDE Specialization
WORKING PRESSURE :- 2 Bar
CHARACTERISTICS :- IP 65 , IP 67 & Mercury free operated Switch
WEATHER RESISTANCE :- cables have good weather resistance, can work normally in the temp. range of -40°C to 90°C, and will not harden or deform due to temperature changes.
Approved by :- SGS and NABL
WIDELY TECHNOLOGIES float switch GCFL15ABBW PRO
The GELZON Level Regulator GCFL15ABBW pro is the ideal solution to control liquid levels in industrial applications such as:
• Industrial waste water
• Emulsion of oils
• Many chemicals
• Ideal for residential, commercial, and industrial use.
• Suitable for automatic control of pumps in:
• Water tanks
• Sewage pumps
• Aquaculture systems
The GELZON level regulator GCFL15ABBW pro can be used everywhere where liquid levels must be supervised. The GCFL15ABBW pro is ideal for industrial applications. It is simple to install and maintenance-free. Thus, fast economical and reliable solutions can be realized.
The GCFL15ABBW pro is equipped with GELZON‘s proResist cable which guarantees extreme durability and resistance. Different than the MS control switches, the GCFL15ABBW pro is a pump switch which can be used for direct control of pumps.
The level controller GCFL15AOBW pro can also be supplied in combination with the GELZON contactor combination, the GELZON motor starter or the GELZON capacitor plug.
Application: For direct pump control for example in industrial waste water, emulsions of oils and fats, diluted acids and brines, aggressive mediums.
Safety Features: Overload protection and resistant to corrosion, ensuring longevity and safety in operation.
All our products are genuine quality, ensuring safety and longevity.
Quality Assurance: All products are manufactured under strict quality control measures to ensure reliability and performance.
