Nylon Cable GlandNylon Cable Gland – Material (Body & Nut): Polyamide PA6 (Nylon) Seal Insert: NBR / EPDM Color: White (Black & Grey optional) Thread Type: PG (DIN 40430) Ingress Protection: IP65 / IP68 (when properly installed) Operating Temperature: Static: −40°C to +100°C Dynamic: −20°C to +80°C Flammability Rating: UL94 V-2 (V-0 optional) Resistance: Oils, greases, fuels, weak acids & alkalis Applications Electrical panels & control cabinets Junction boxes Industrial automation systems Power distribution equipment Customize specs for PG7, PG9, PG11, PG13.5, PG16, etc.Read updateDec 13th, 2025 11:02 AM

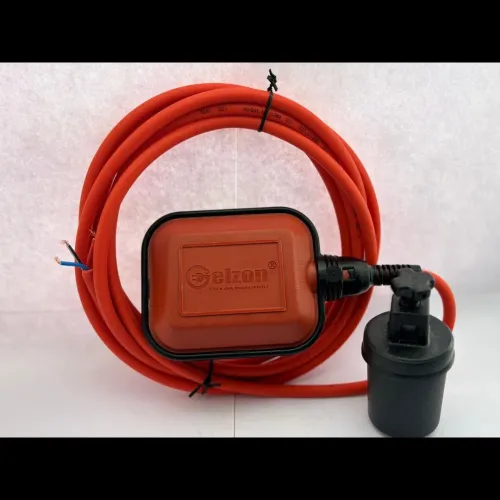

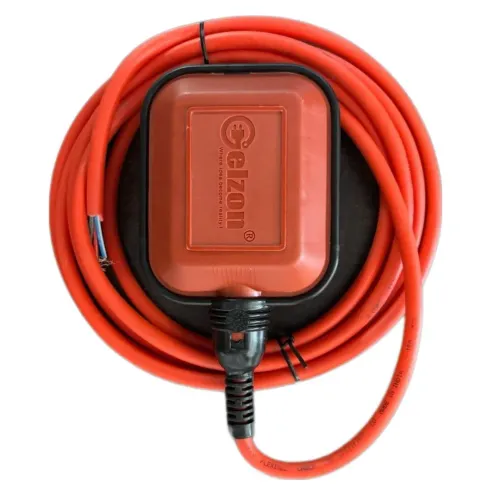

Cable Float SwitchCable Flow Switch with Counterweight (Gelzon Brand) ### *1. Product Overview* The *Gelzon Cable Flow Switch* is a heavy-duty liquid level controller designed for automatic pump ON/OFF control in water tanks, borewells, sumps, sewage pits and industrial tanks. It uses a tilt-activated internal microswitch to detect rising or falling water levels and switch circuits accordingly. # *2. Electrical Specifications* * *Rated Voltage:* 220–250V AC * *Rated Current:* 10A * *Max Load Capacity:* Up to 1 HP pump (direct), higher via starter * *Power Frequency:* 50/60 Hz * *Switch Type:* SPDT (Changeover…Read updateDec 12th, 2025 12:19 PM
Cable tiesCable ties and accessories manufactured by us are UL, CE and ROHS approved. We are an ISO certified organization and strictly adhere to international quality standards. Our products are manufactured using high-quality raw materials which are inspected by our quality inspectors ensure they meet our quality standards Non - Releasable Cable Ties / UV Resistant cable ties / Heat stabilized cable ties / Coloured Cable Ties / Fire Retardant Cable Ties / Laser Marking Cable Ties All colour can be manufactured against orders. Raw Material: PA / Nylon 6.6 Flammability rating: UL 94 V2 Test…Read updateDec 11th, 2025 12:14 PM
Nylon Cable Ties....Cable ties and accessories manufactured by us are UL, CE and ROHS approved. We are an ISO certified organization and strictly adhere to international quality standards. Our products are manufactured using high-quality raw materials which are inspected by our quality inspectors ensure they meet our quality standards Non - Releasable Cable Ties / UV Resistant cable ties / Heat stabilized cable ties / Coloured Cable Ties / Fire Retardant Cable Ties / Laser Marking Cable Ties All colour can be manufactured against orders. Raw Material: PA / Nylon 6.6 Flammability rating: UL 94 V2 Test…Read updateDec 9th, 2025 10:19 AM

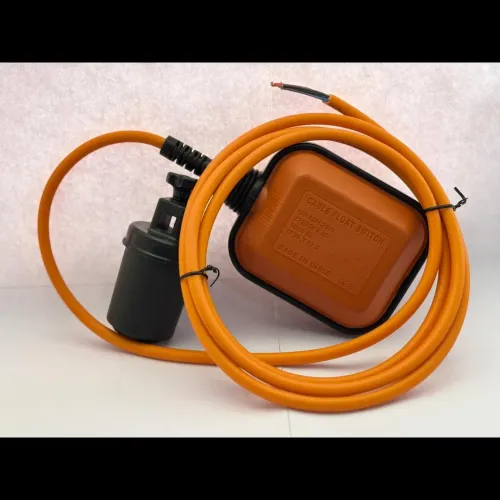

Gelzon Cable Float SwitchCable Float Switch** * **Product Type:** Cable Float Switch (Water Level Controller) * **Country of Manufacture:** Made in India * **Rated Voltage:** 220–250 V AC * **Frequency:** 50/60 Hz * **Maximum Switching Current:** Typically 10A (standard for this float switch type) * **Switch Type:** Micro-switch (SPDT) * **Contact Rating:** Resistive load, up to 10A at 250VAC *(industry standard)* * **Ingress Protection (IP Rating):** IP68 * Completely dustproof * Suitable for continuous submersion * **Operating Temperature Range:** Up to 90°C (as printed) * **Medium Compatibility:** * Clean water *…Read updateDec 8th, 2025 9:51 AM

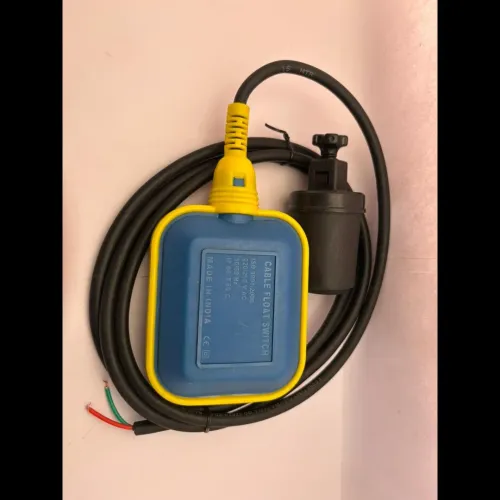

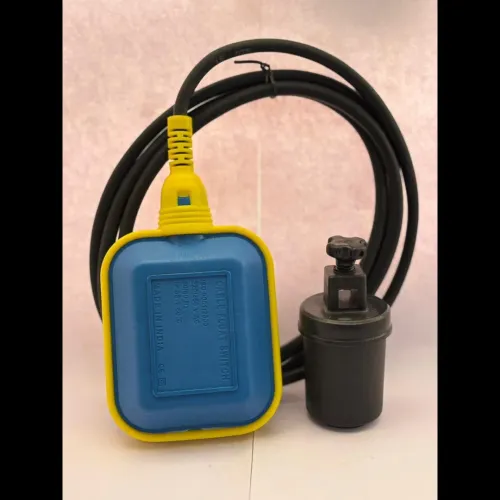

Cable float switchcable float switch assembly commonly used for automatic water level control in tanks, sump pumps, industrial water systems, and similar applications. Main Components Visible: Float Switch (Blue & Yellow Body) The large blue-and-yellow rectangular component is the actual float. As water level rises or falls, the float tilts and activates an internal microswitch. Attached Cable A long, thick, insulated cable is connected to the float. This cable carries the switching signal to the pump/control panel. Counterweight (Black Component) The cylindrical black part with a clamp is a counterweight. It…Read updateDec 5th, 2025 11:45 AM
Cable float switch switchcable float switch assembly commonly used for automatic water level control in tanks, sump pumps, industrial water systems, and similar applications. Main Components Visible: Float Switch (Blue & Yellow Body) The large blue-and-yellow rectangular component is the actual float. As water level rises or falls, the float tilts and activates an internal microswitch. Attached Cable A long, thick, insulated cable is connected to the float. This cable carries the switching signal to the pump/control panel. Counterweight (Black Component) The cylindrical black part with a clamp is a counterweight. It…Read updateDec 4th, 2025 10:22 AM
Gelzon float switch**cable float switch** — a device commonly used to automatically control the level of liquids in tanks, wells, or sumps. Here’s a breakdown of the information visible on the switch: * **Type**: Cable Float Switch * **Voltage Rating**: 220–250V AC * **Frequency**: 50/60 Hz * **Protection Class**: IP68 (fully waterproof for submersion) * **Temperature Rating**: up to 75°C * **Standard**: ISO 9001:2000 * **Country of Manufacture**: Made in India ### Function: A cable float switch works by floating on the liquid surface. When the liquid level rises or falls, the switch tilts, triggering an…Read updateDec 3rd, 2025 10:35 AM

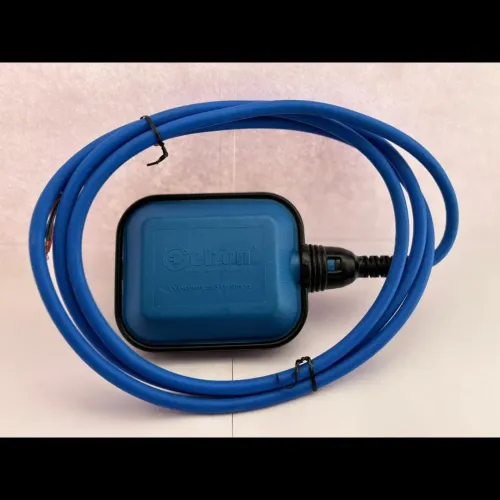

Cable Float Switch + Rubber GromentSpecialized float for use with fully submersible pumps. Essential for managing water levels in deep wells and sumps, where the entire switch assembly operates underwater, demanding superior sealing and cable integrity.Read updateDec 2nd, 2025 11:26 AM

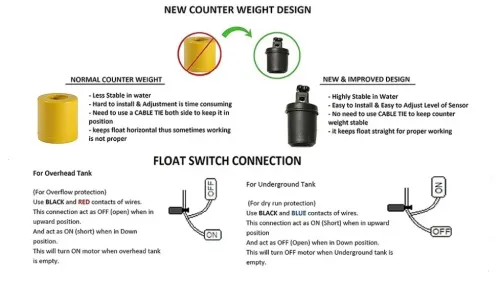

New Counter Weight Advanced Float Switch { Gelzon }# Widely Technologies ## Advanced Float Switch & Counterweight System --- ## **New Counterweight Design (Improved Model)** ### **✔ Highly Stable in Water** Designed to maintain proper buoyancy and remain steady in all water levels. ### **✔ Easy Installation & Adjustment** Built for quick setup with adjustable sensor level control. ### **✔ No Cable Ties Required** Weights are engineered to lock securely in place without additional support. ### **✔ Ensures Proper Float Operation** Prevents tangling and ensures the float switch maintains the correct angle for reliable sensor performance.Read updateDec 1st, 2025 11:23 AM
